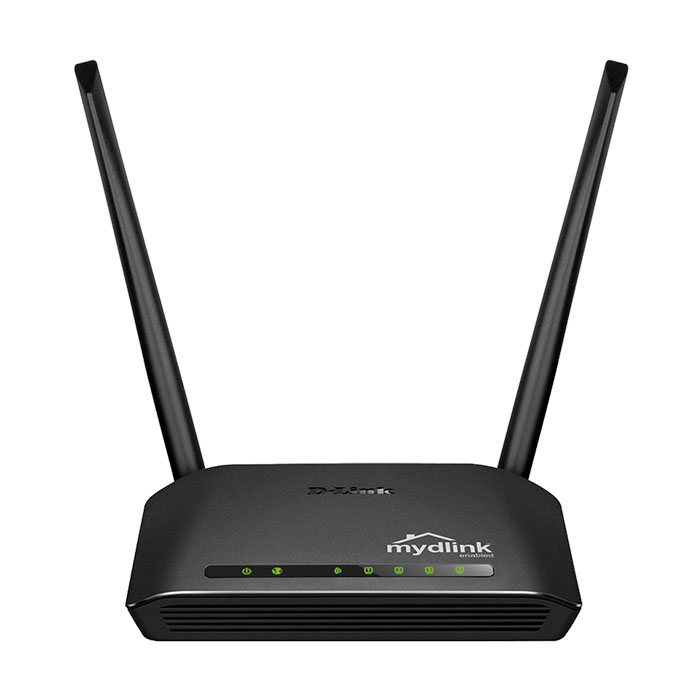

D-LINK DIR-816L WL AC750 Dual-Band Cloud Router

• Device Interfaces
IEEE 802.11ac wireless LAN1
IEEE 802.11 a/b/g/n wireless LAN
10/100 fast Ethernet WAN port
Four 10/100 fast Ethernet LAN ports
• LEDs
Power
Internet
WLAN
LAN (for each port)
WPS
• Antenna Type
Two external antennas
• Operating Frequency
2.4 GHz band: 2400 - 2483.5 MHz
5 GHz band: 5150 - 5725 MHz
• Standards
IEEE 802.11ac (draft)
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
IEEE 802.3u
• Minimum Requirements
Windows 8/7/Vista/XP SP3, or Mac OS X 10.4 or higher
Internet Explorer 7, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Ethernet interface or Wi-Fi
Cable or DSL Modem
Subscription with an Internet Service Provider
• Security
WPA & WPA2 (Wi-Fi Protected Access)
WPS (Wi-Fi Protected Setup)
• Advanced Features
Web setup wizard
QoS (Quality of Service)
DMZ (Demilitarised Zone)
Firewall - Network Address Translation (NAT)
Guest zone
IPv6 ready
• mydlink™ SharePort™ Features
Remote Access Mode: Access files through the Internet
Local Access Mode: Access files from any device connected to the DIR-816L
SharePort Web File Access support (web browser)
Access files from any device connected to the DIR-816L
Accepts USB storage drives up to 250 GB
• mydlink™ Lite App Features
Remote Management
View current upload/download bandwidth
View currently connected clients
View web browsing history per client
Block/unblock client network access
Manage wireless network details
Accessible through a web browser or iOS or Android mobile app
• Mobile App Support
mydlink™ Lite
mydlink™ SharePort™
QRS Mobile
Apps support iPhone, iPad, iPod Touch, and Android devices
• Dimensions
151.6 x 112 x 30.5 mm (5.97 x 4.41 x 1.2 inches)
• Weight
204 grams (7.2 ounces)
• Power
Input: 100 to 240 V AC, 50/60 Hz
• Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 65 °C (-4 to 149 °F)
• Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
• Certifications
IC
CE
CSA
FCC
C-Tick
