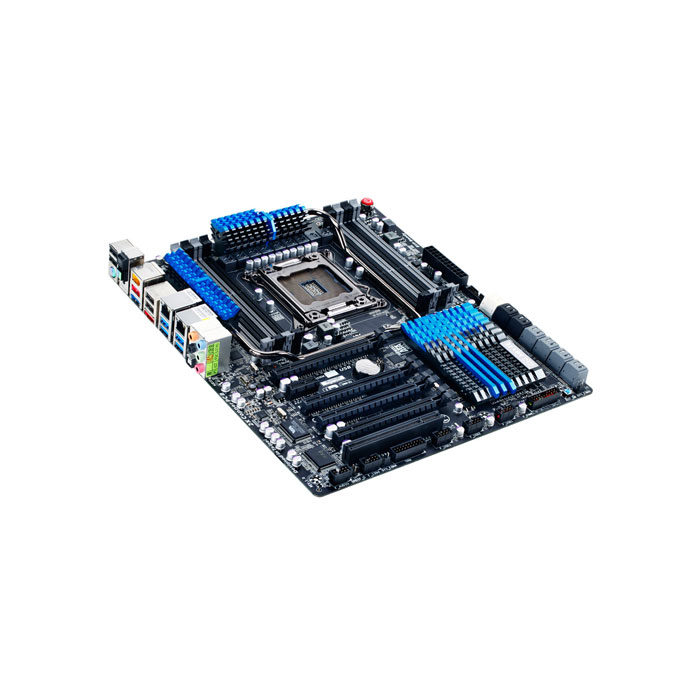

GIGABYTE GA-X79S-UP5-WIFI

CPU
Support for Intel ® Core™ i7 processors in the LGA2011 package

Chipset
Intel ® C606 Express Chipset

Memory
8 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
4 channel memory architecture
Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
Support for ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

VGA
-

Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16_2 slot. When the PCIEX8 slot is populated, the PCIEX16_2 slot will operate at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX16, PCIEX8, and PCIEX4 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCIEX1 slot conforms to PCI Express 2.0 standard.)
1 x PCI slot

Support for 3-Way/2-Way AMD CrossFireX™/NVIDIA SLI technology

Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
8 x SAS 3Gb/s connectors
1 x CPU fan header
4 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x IEEE 1394a port
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
1 x power button
1 x reset button

Storage Interface
Chipset:
2 x SATA 6Gb/s connectors (SATA3 0~1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
8 x SAS 3Gb/s connectors (SAS2 0~7) supporting up to 8 SAS 3Gb/s devices
* The SAS connectors do not support optical drives.
Support for RAID 0, RAID 1, and RAID 10

Marvell 88SE9172 chip:
2 x eSATA 6Gb/s connectors (including 1 eSATA/USB Combo) on the back panel supporting up to 2 SATA 6Gb/s devices
Support for RAID 0 and RAID 1

Audio
Realtek ALC898 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN1)
1 x Realtek GbE LAN chip (10/100/1000 Mbit) (LAN2)

Rear Panel I/O Ports
1 x PS/2 keyboard/mouse port
1 x CPU overclocking button
1 x BIOS switch button
1 x Clear CMOS button
1 x IEEE 1394a port
4 x USB 3.0/2.0 ports
5 x USB 2.0/1.1 ports
1 x eSATA/USB Combo connector
1 x eSATA 6Gb/s connector
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Form Factor
E-ATX

Dimensions
30.5cm x 26.4cm

Package
Box
