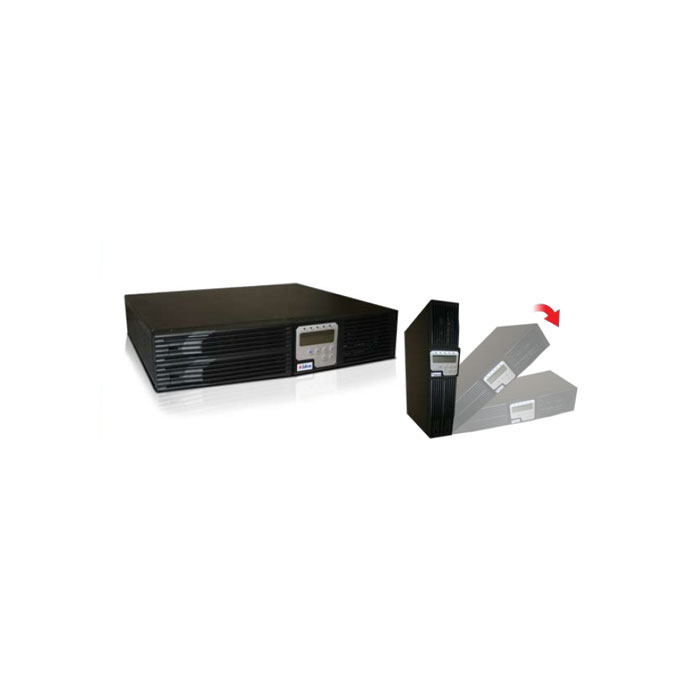

INFORM Sinus SS LCD 220

Input
Power (kVA) 2
Voltage 160 - 288 VAC
Frequency 50 / 60 Hz. ± 5 % (Auto Sensing)
Power Factor >0.99

Output
Power Factor 0.8
Voltage 220VAC / 230 / 240 VAC
Voltage Regulation ±%1
Frequency 50 / 60 Hz (Auto Detection)
Frequency Regulation ±0,1%
Harmonic Distortion < 3 %
Crest Factor 3:1
Overload Capacity 100% - 120% for 30 seconds, 120% - 150% for 10 seconds
Whole efficiency >85%
Inverter efficiency >90%
Transfer Time 0ms

Battery
Battery Type Maintenance-free lead acid batteries
DC Voltage 72V
Internal Battery 6pcs 12V 7Ah
Built in max. charge current 2.1A
Back Up Time Full Load 7 min
Half Load 20 min
Recharge Time 3 Hours (to 90% Of Full Capacity)

Display
LCD Display Input/Output Voltage And Frequency Valuers,
Load%, Battery voltage, Internal Temperature
LED Indicators Utility Or By Pass, Battery Low, Battery Abnormal, Overload, Site Wiring Fault,
Service Mode, Ups Off, Ups Abnormal Indicators

Alarms
Line Failure, Battery Low, Over Load, Failure Events

Protection
short circuit, over temperature, overload, high voltage, battery low,EPO

Communication
Interface
(Communication Port) RS-232 and USB
Slots Relay Contact Board, SNMP/WEB Card

Environment
Temparature 0°C - 40°C
Humidity 0%-90%
Noise Level (1m Distance) <50dBA (at 1 meter)
Protection Class IP20

Physical specifications
Outlets 6 pcs IEC or 2pcs Schuko
Dimensions (mm) WxHxD 440x88x650
Net Weight (kg) 29.5

Standards
Standards EN 62040-1-1 (safety), EN 62040-2 (EMC)

Warranty
24 months for product
12 months for batteries
