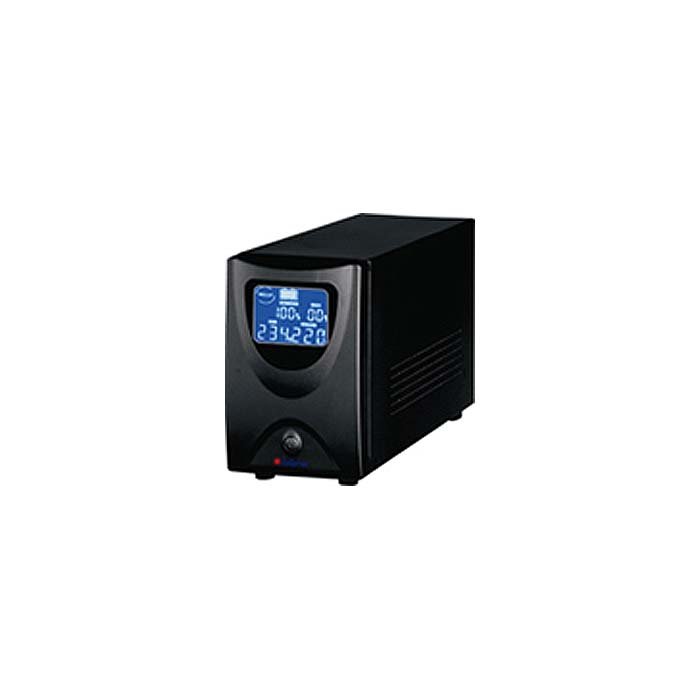

INFORM GUARD_LCD 1500AP

Input
Capacity 1500VA
Voltage 160~280V
Frequency 50Hz~60Hz

Output
Voltage 220~230V ±10%
Frequency 50Hz~60Hz ±1%
Voltage Regulation (AVR) AVR automatically increase/decrease output voltage 20% above/13% below input voltage if -9% to -25%/+9% to +25% of nominal
Transfer Time 4-6ms

Battery
Battery Type Sealed, Maintenance-free lead acid
Recharge Time 8-10 hours (to 90% of full capacity)
Voltage 24VDC
Battery quantity 2pcs, 12V, 7Ah
Back-up Time 5-20mins (depending on PC load)

Protection
Unit Input: Short-circuit protection, Overload, Noise supression, Spike supression, Battery over drain, Modem/Network

Conformance
Safety Standard EN50091-1
EMC Standard EN50091-2
Protection class IP20

Environment
Operating temperature 0-40 C
Humidity 0-95% non-condensing
Audible noise at 1 m < 40dBA

Communication
RS-232 comm. port

Physical
Dimension, W*H*D 120*200*415 mm
Net Weight 15 kgs

Warranty
24 months for product
12 months for batteries

www.informups.com
