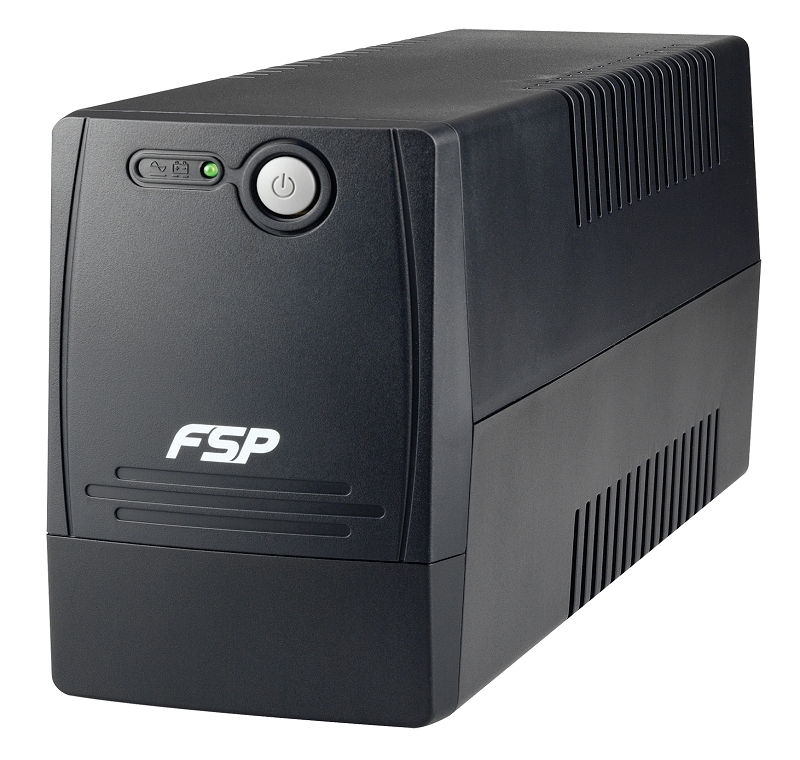

FORTRON FP800 /800VA
Product ID: 50477
• Mnfr Part #: PPF4800407
• Weight: 4.90 kg
• Dimensions: 279 x 101 x 142 mm
• Warranty: 24 months, 12 months battery
• Frequency: Input Frequence 60/50 Hz (auto sensing), Output / Frequence Range 60 Hz or 50 Hz ± 1 Hz
• Model: FP800 /800VA
• Capacity: 800 VA / 480W
• Manufacturer: FORTRON
• Type: Line-interactive
• Battery: Battery Type & Number:12 V / 9 AH x 1; Backup Time (One PC load@120W):15 min.; Typical Recharge Time:4-6 hours recover to 90% capacity.
• Interface: Outlet Sockets:2x Schuko; Management / Optional USB / RS-232 Port:Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux and MAC.
• Standarts: -
• Display: Indicators / AC Mode:Green lighting; Indicators / Battery Mode:Green flashing; Indicators / Fault:No.
• Input: Available Factory Settings:110 / 120 VAC or 220 / 230 / 240 VAC; Input Voltage Range:81-145 / 162-290 VAC; Input Frequency:60/50 Hz (auto sensing).
• Output: Output Voltage:220V nominal; Output Frequency Range:50 Hz or 60 Hz ±1 Hz; Output Transfer Time (Typical):Typical 2-6 ms; Output Waveform (Batt. Mode):Simulated Sine Wave.
• Environment: Overload Protection:Yes; Discharge Protection:Yes; Overcharge Protection:Yes; Operating Environment / Humidity:0-90% RH @ 0-40°C (non-condensing); Operating Environment / Noise Level:Less than 40dB.
• Alarms: Alarm / Battery Mode:Sounding every 10 seconds; Alarm / Low Battery:Sounding every second (Batt. Mode); Alarm / Overload:Sounding twice per second; Alarm / Battery Replacement Alarm:Sounding every 2 seconds; Alarm / Fault:Continuously sounding.
