High-definition multimedia adapter

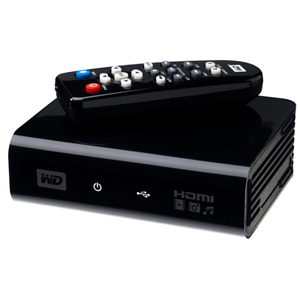

WD TV HD Media Player Combined with a USB portable drive (sold separately), this player is the most convenient way to play HD movies or user-generated videos, listen to high-quality digital music and show high-resolution slideshows of your family photos on your TV. Also works with popular USB drives, and digital cameras, camcorders, and portable media players that can be recognized as mass storage devices.
Full HD video playback and navigation - up to 1080p - Experience the spectacular picture quality of HD video and crystal clear sound clarity of digital audio. Use the included remote control to navigate through your entertainment choices using our crisp, animated HD menus.
Collect without limits - There's no limit to the size of your media collection; just add more USB drives for more space.
File Formats Supported
Music - MP3, WMA, OGG, WAV/PCM/LPCM, AAC, FLAC, Dolby Digital, AIF/AIFF, MKA
Photo - JPEG, GIF, TIF/TIFF, BMP, PNG
Video -MPEG1/2/4, WMV9, AVI (MPEG4, Xvid, AVC), H.264, MKV, MOV (MPEG4, H.264)
Playlist - PLS, M3U, WPL
Subtitle -SRT (UTF-8)
Note:
- MPEG2/4, H.264, and WMV9 supports up to 1920x1080p 24fps, 1920x1080i 30fps, 1280x720p 60fps resolution
- An audio receiver is required for surround sound output. AAC/Dolby Digital decodes in 2 channel output only
- JPEG does not support CMYK or loss less.
- BMP supports uncompressed format only.
- TIF/TIFF supports single layer only.
File Formats Not Supported
Does not support protected premium content such as movies or music from the iTunes® Store, Cinema Now, Movielink®, Amazon Unbox™, and Vongo®
External Drive Formats Supported
FAT32, NTFS, HFS+ (no journaling)
Performance Specifications
Serial Transfer Rate, USB 2.0
Serial Bus Transfer Rate (USB 2.0) 480 Mbits/s (Max)
Physical Specifications
Capacity N/A

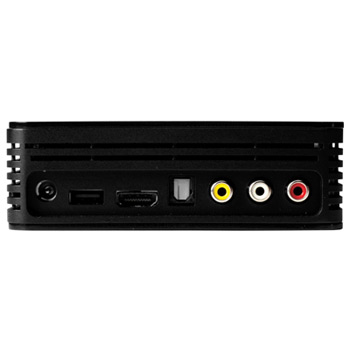

Interface HDMI, Composite A/V, USB 2.0
Physical Dimensions
Height 40 mm (Max)
Length 100 mm (Max)
Width 125.5 mm (Max)
Weight 303 g
Environmental Specifications
Temperature
Operating 5° C to 35° C
Non-operating -40° C to 65° C
Electrical Specifications
Power Dissipation
AC Input Voltage 100-240 VAC
AC Input Frequency 50-60 Hz
System Requirements
USB storage device with supported video or audio content stored on it.
Standard or high definition television with HDMI or composite video connections
Part.N:
WDAVP00BE
